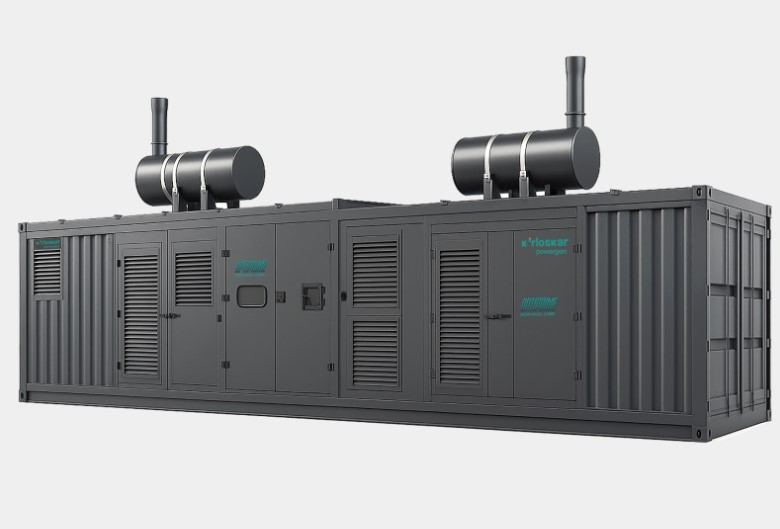

Kirloskar Optiprime
117 kVA – 2020 kVA

A modular design — multiple Kirloskar gensets synchronized into one intelligent system, scaling capacity with built-in redundancy and intelligent load sharing. Seven standard configurations from 117 kVA to 2020 kVA, with higher capacities by adding units.

7 modular configurations from 117 to 2020 kVA

Synchronized gensets, expandable in modules — built-in load sharing

Built-in redundancy — one unit keeps running during maintenance

Noise level ≤75 dB(A)

Three-phase 415V, PF 0.8

Get a Quote Call Now WhatsApp

Technical Specifications

7 standard modular configurations — synchronized Kirloskar gensets

Specification	117 kVA	400 kVA	500 kVA	640 kVA	1000 kVA	1500 kVA	2020 kVA
Configuration	58.5×2 kVA	200×2 kVA	250×2 kVA	320×2 kVA	500×2 kVA	750×2 kVA	1010×2 kVA
Prime Power (kW/unit)	46.8	160	200	256	400	600	808
Engine Model	4R810ETA 4G1	6K1080ETA 4G2	6SL90ETA 4G2	6SL90ETA 4G3	DV8ETA 4G3	DV12ETA 4G2	DV16 ETA G3
Engine Output (HP/unit)	74	250	310	380	608	900.6	1210
Voltage	415V (3ɸ)	415V (3ɸ)	415V (3ɸ)	415V (3ɸ)	415V (3ɸ)	415V (3ɸ)	415V (3ɸ)
Frequency (Hz)	50	50	50	50	50	50	50
Power Factor	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Noise Level (dBA)	≤75	≤75	≤75	≤75	≤75	≤75	≤75
Combined Dry Weight (kg)	2511	6000	8000	8100	13,786	18,500	25,170
Dimensions L×W×H (mm)	2900×2100×1701	7500×1450×1900	8500×1700×2042	8500×1700×2042	11200×2125×2655	12000×2300×2713	12192×2438×2895

Specifications are indicative. Contact us for the latest manufacturer datasheet and current pricing.

Key Features

The Smart Way to Scale Power

Modular Design

Multiple Kirloskar gensets synchronized into one intelligent system — a modular design that scales capacity far beyond a single unit in the same control footprint.

Built-In Redundancy

If one unit requires service, the other continues supplying power — eliminating the single point of failure found in conventional single-genset installations.

Intelligent Load Sharing

The Optiprime controller automatically distributes load between both units for optimal fuel efficiency and equal wear — extending total service life.
